Honda Engines

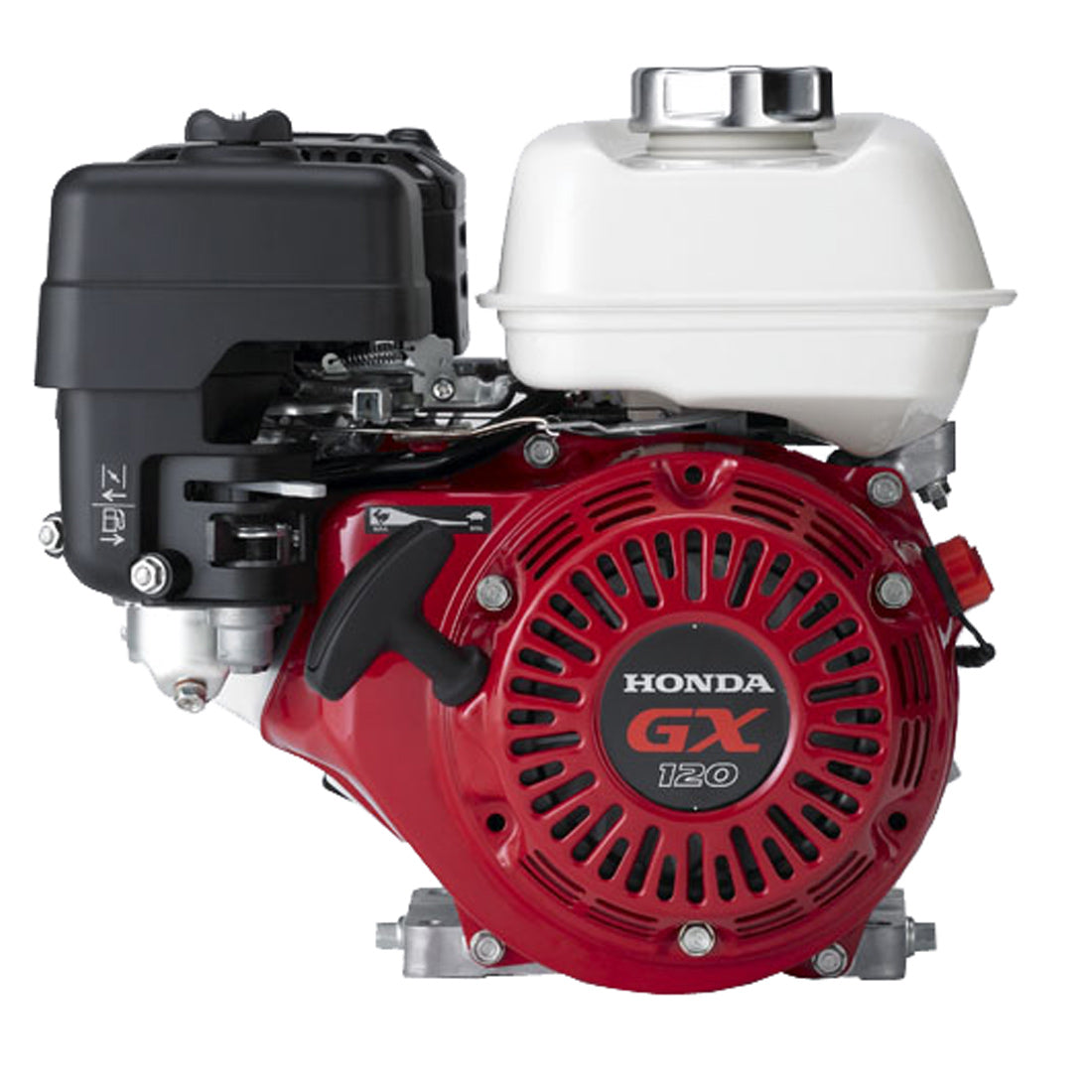

Honda GX120 Horizontal Engine
Honda GX120 Horizontal Engine
Regular price
$368.00 USD
Regular price
Sale price
$368.00 USD
Unit price
/
per
Couldn't load pickup availability
GX120 |
||
| Engine Type |
Air-cooled 4-stroke OHV
|
|
| Bore x Stroke | 60 X 43.5 mm | |
| Displacement | 122 cm3 | |
| Net Power Output* |
3.2 hp (2.4 kW) @ 3,600 rpm
|
|
| Net Torque |
5.5 lb-ft (7.3 Nm) @ 2,500 rpm
|
|
| PTO Shaft Rotation |
Counterclockwise (from PTO shaft side)
|
|
| Compression Ratio | 8.3:1 | |
| Lamp/Charge coil options | 25W, 50W | |
| Carburetor | Butterfly | |
| Ignition System |
Transistorized magneto
|
|
| Starting System | Recoil | |
| Lubrication System | Splash | |
| Governor System | Mechanical | |
| Air Cleaner | Dual Element | |
| Oil Capacity |
0.59 US qt. (0.56 L)
|
|
| Fuel Tank Capacity |
2.1 U.S. qts (2.0 liters)
|
|
| Fuel |
Unleaded 86 octane or higher
|
|
| Dry Weight |
28.9 lbs. (13.2 kg)
|
|
| DIMENSIONS | ||
| GX120 | ||
| Length (min) |
11.7” (297 mm)
|
|
| Width (min) |
13.6” (346 mm)
|
|
| Height (min) |
13.0” (329 mm)
|
