Honda Engines

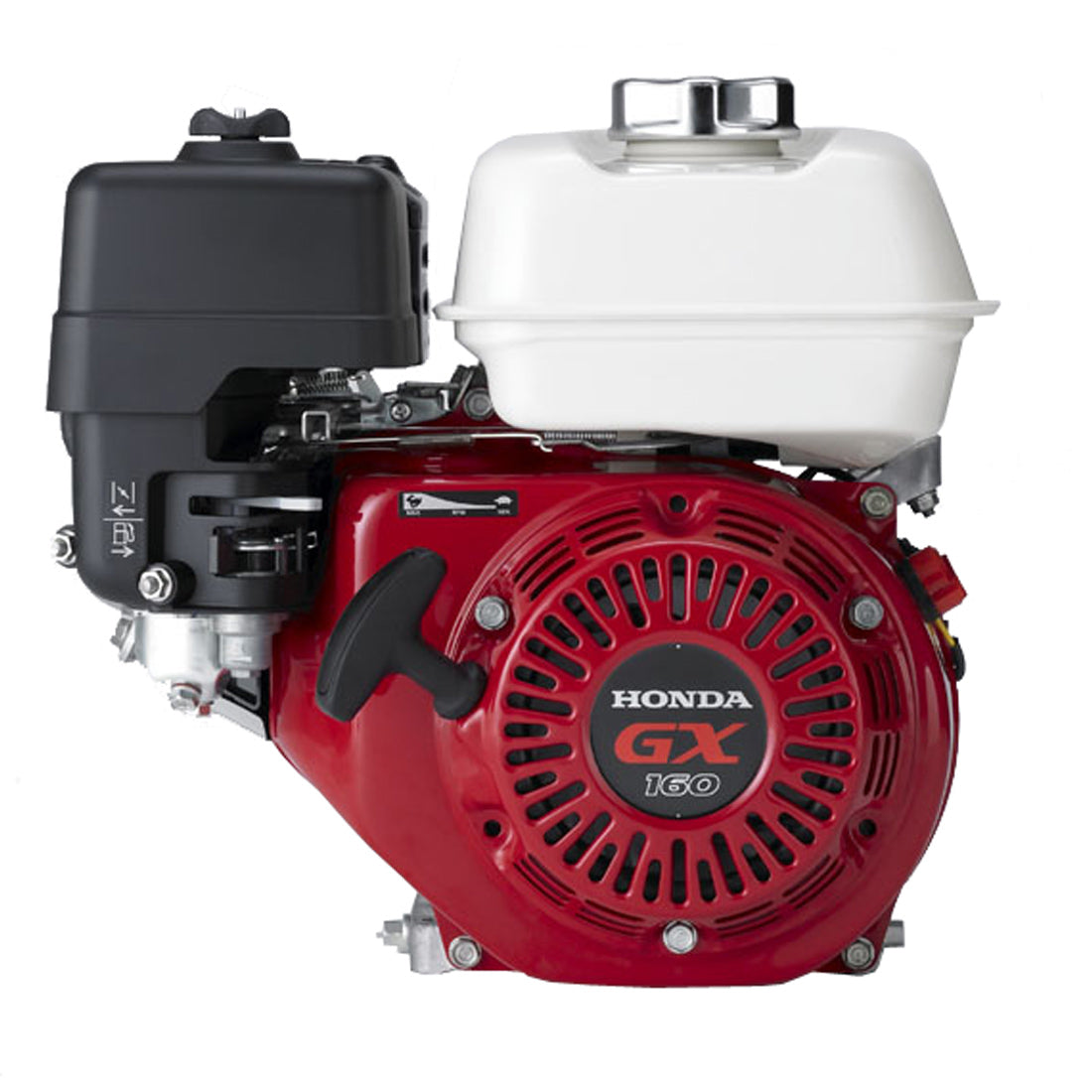

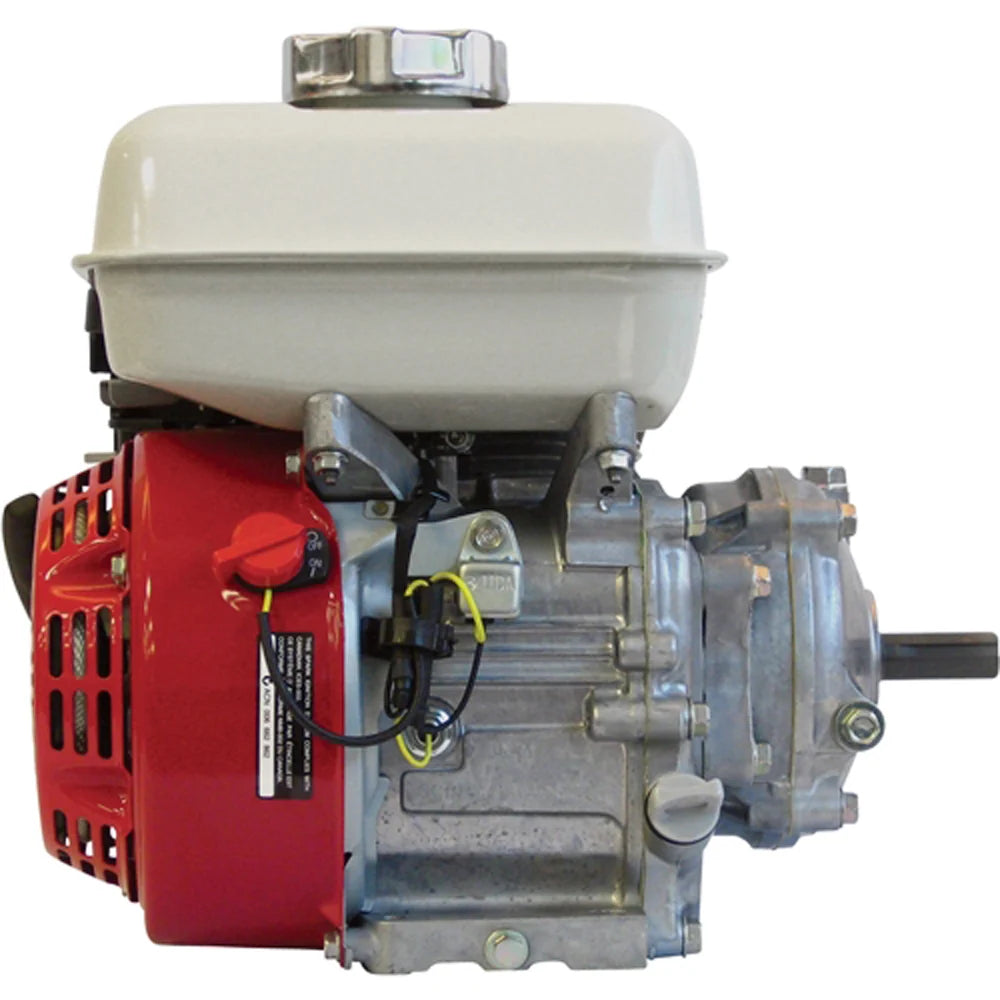

Honda GX160 HX2 Horizontal Engine

Honda GX160 HX2 Horizontal Engine

Regular price $531.00 USD
Regular price Sale price $531.00 USD
Sale Sold out

GX160 HX2

Starter Type Recoil
Ignition System
Transistorized Magneto
Carburetor Butterfly
Number of Cylinders One
Cylinder Bore
Cast Iron Sleeve
Air Cleaner Dual Element
Oil Capacity 0.61 qt
Low Oil Alert Yes
Fuel
Unleaded 86 Octane or Higher
Fuel Tank Capacity 3.3 qt
Fuel Pump N/A
Governor System
Centrifugal Mechanical
Controls Manual Choke
Bore x Stroke
68mm x 45mm
Compression Ratio 9.0 : 1
Charging System N/A
Muffler
Standard, Spark Arrestor Optional
POWER
Power Output
4.8 HP @ 3600 RPM
Torque
7.6 lb-ft (10.3 Nm) @ 2500 rpm
CRANKSHAFT
Orientation Horizontal
Type
Reduction Type
Diameter 3/4"
Length 1-31/32"
Dimensions 3/4" x 1-31/32"
Keyway 3/16"
Rotation Direction
Counter-Clockwise
DIMENSIONS
Weight 46 lb
PTO Height 4-11/64"
