Honda Engines

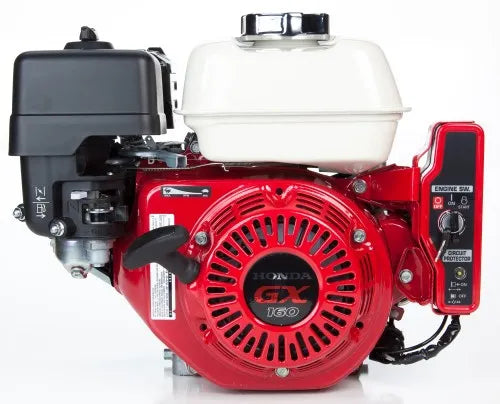

Honda GX160 QXE2 Horizontal Engine
Honda GX160 QXE2 Horizontal Engine
Regular price
$662.00 USD
Regular price
Sale price
$662.00 USD
Unit price
/
per
Couldn't load pickup availability
GX160 QXE2 |
|
| Starter Type |
Electric and Recoil
|
| Ignition System |
Transistorized Magneto
|
| Carburetor | Butterfly |
| Number of Cylinders | One |
| Cylinder Bore |
Cast Iron Sleeve
|
| Air Cleaner | Dual Element |
| Oil Capacity | 0.61 qt |
| Low Oil Alert | Yes |
| Fuel |
Unleaded 86 Octane or Higher
|
| Fuel Tank Capacity | 3.3 qt |
| Fuel Pump | N/A |
| Governor System |
Centrifugal Mechanical
|
| Controls |
Manual Choke, Manual/Remote (Rod) Throttle
|
| Bore x Stroke |
68mm x 45mm
|
| Compression Ratio | 9.0 : 1 |
| Charging System | 1 Amp |
| Muffler |
Standard, Spark Arrestor Optional
|
POWER |
|
| Power Output |
4.8 HP @ 3600 RPM
|
| Torque |
7.6 lb-ft (10.3 Nm) @ 2500 rpm
|
CRANKSHAFT |
|
| Orientation | Horizontal |
| Type | Straight |
| Diameter | 3/4" |
| Length | 2-27/64" |
| Dimensions | 3/4" x 2-27/64" |
| End Tapped Size | 5/16"-24 |
| Keyway | 3/16" |
| Rotation Direction |
Counter-Clockwise
|
DIMENSIONS |
|
| Weight | 41 lb |
| PTO Height | 4-11/64" |
