Honda Engines

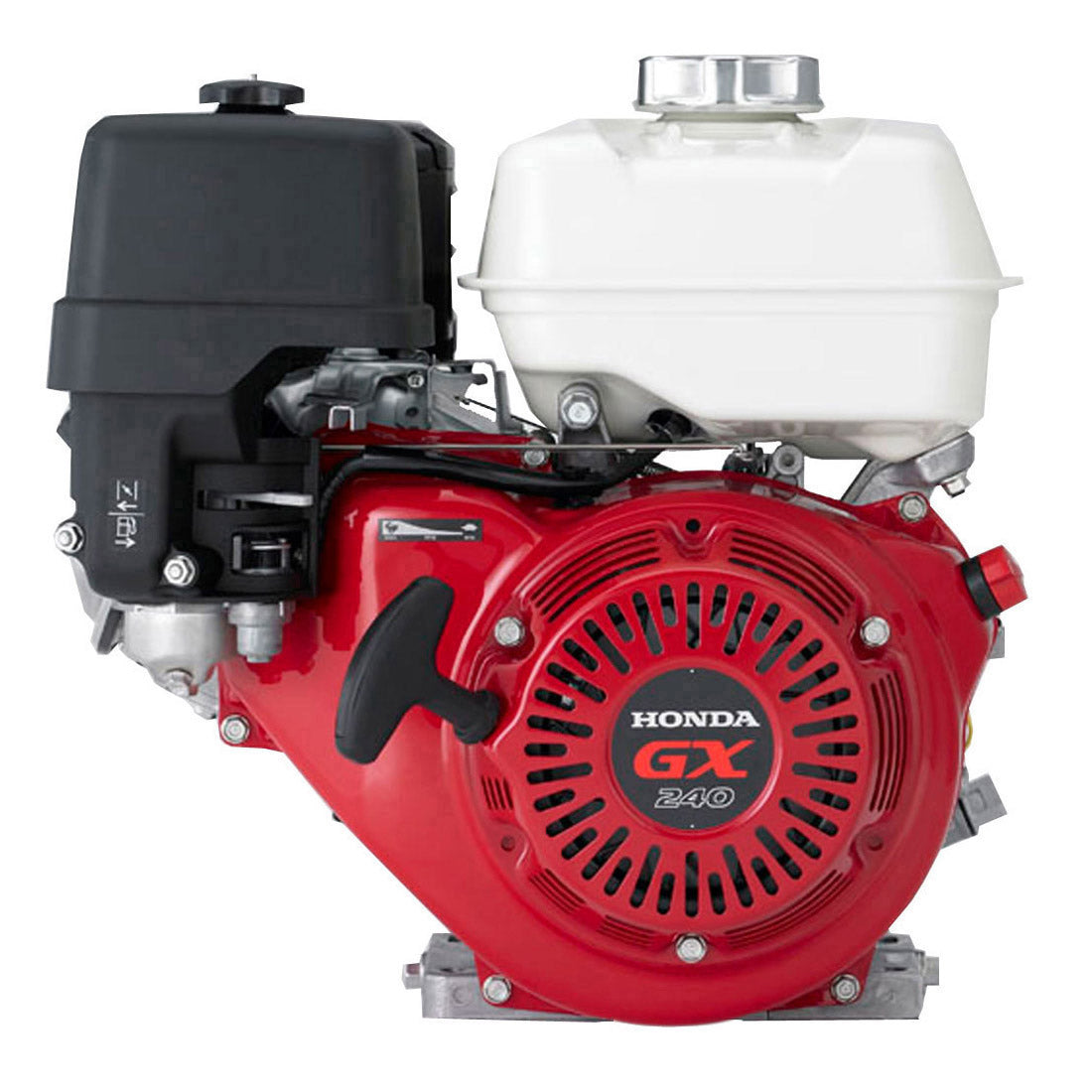

Honda GX240 HA2 Horizontal Engine
Honda GX240 HA2 Horizontal Engine
Regular price
$795.00 USD
Regular price
Sale price
$795.00 USD
Unit price
/
per
Couldn't load pickup availability
GX240 |
|
| Engine Type |
Air-cooled 4-stroke OHV
|
| Bore x Stroke | 77 X 58 mm |
| Displacement | 270 cm3 |
| Net Power Output* |
7.9 hp (5.9 kW) @ 3,600 rpm
|
| Net Torque |
13.4 lb-ft (18.3 Nm) @ 2,500 rpm
|
| PTO Shaft Rotation |
Counterclockwise (from PTO shaft side)
|
| Compression Ratio | 8.5:1 |
| Lamp/Charge coil options |
25W, 50W / 1A, 3A, 10A, 18A
|
| Carburetor |
Butterfly Float Type
|
| Ignition System |
Digital CDI with variable ignition timing
|
| Starting System | Recoil/electric |
| Lubrication System | Splash |
| Governor System |
Centrifugal Mass Type
|
| Air Cleaner | Dual element |
| Oil Capacity |
1.16 US qt (1.1 L)
|
| Fuel Tank Capacity |
5.6 U.S. qts (5.3 liters)
|
| Fuel |
Unleaded 86 octane or higher
|
| Dry Weight |
55.1 to 66.1 lb (25 to 30 kg)
|
| DIMENSIONS | |
| GX240 | |
| Length (min) |
15.0" (380 mm)
|
| Width (min) |
16.9" (429 mm)
|
| Height (min) |
16.6" (422 mm)
|
