Honda Engines

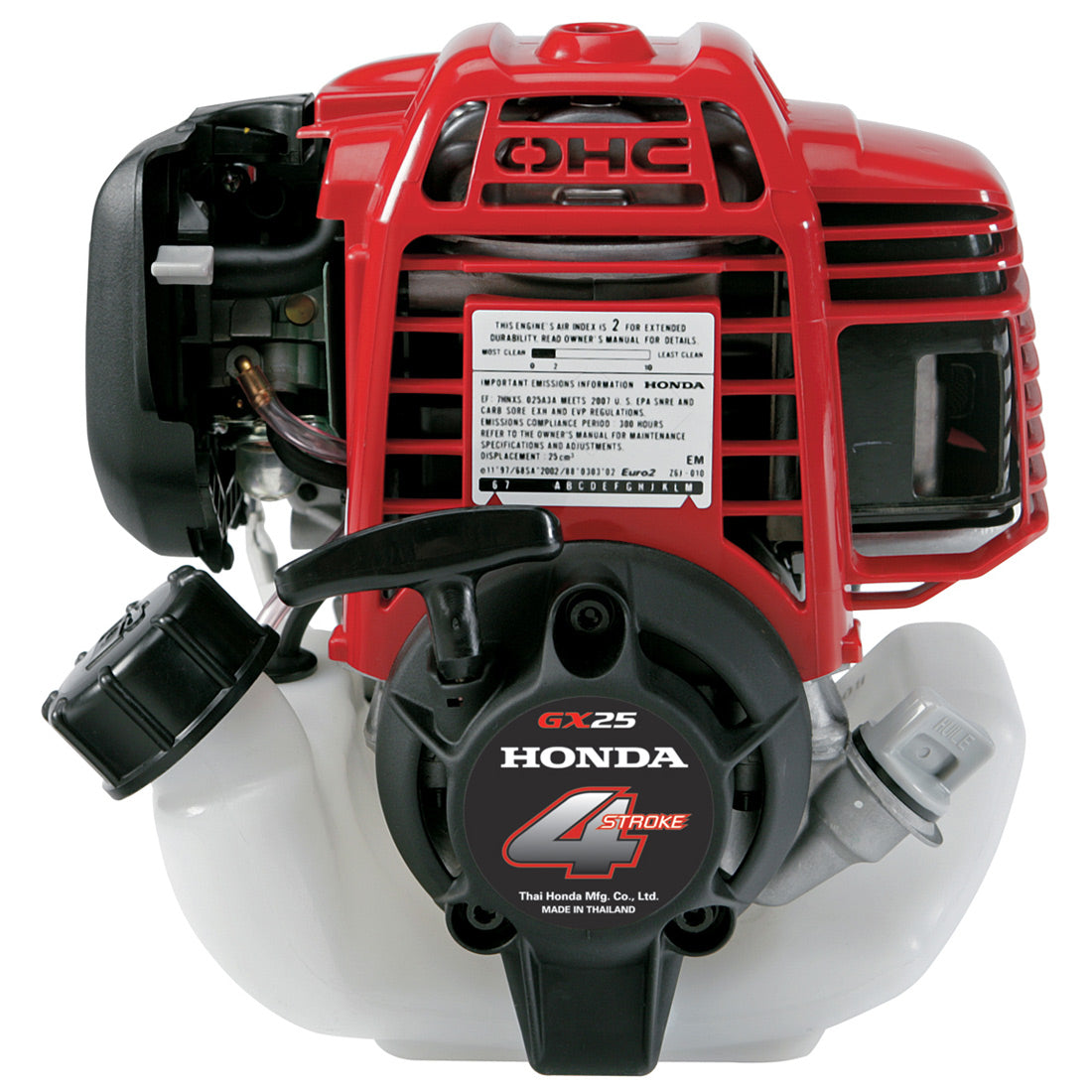

Honda GX25 S3 Horizontal Engine
Honda GX25 S3 Horizontal Engine
Regular price
$227.00 USD
Regular price
Sale price
$227.00 USD
Unit price
/
per
Couldn't load pickup availability
| GX25 | |
| Engine Type |
Air-cooled 4-stroke OHC
|
| Bore x Stroke |
35 mm x 26 mm
|
| Displacement | 25 cm3 |
| Net Power Output* |
1.0 hp (.72 kW) @ 7,000 rpm
|
| Net Torque |
0.74 lb-ft (1.0 Nm) @ 5,000 rpm
|
| PTO Shaft Rotation |
Counterclockwise (from PTO shaft side)
|
| Compression Ratio | 8.0:1 |
| Carburetor |
Diaphragm-type (overflow return)
|
| Ignition System |
Transistorized magneto
|
| Starting System | Recoil |
| Lubrication System |
Crankcase pressure–driven
|
| Governor System | NA |
| Air Cleaner | Semi-dry |
| Oil Capacity |
2.7 US oz (80cc)
|
| Fuel |
Unleaded 86 octane or higher
|
| Fuel Tank Capacity |
.61 U.S. qt (0.58 liter)
|
| Dry Weight | 6.8 lb (2.7 kg) |
| DIMENSIONS | |
| GX25 | |
| Length (min) | 7.6" (192mm) |
| Width (min) | 8.7" (221mm) |
| Height (min) | 9.1" (230mm) |
