Honda Engines

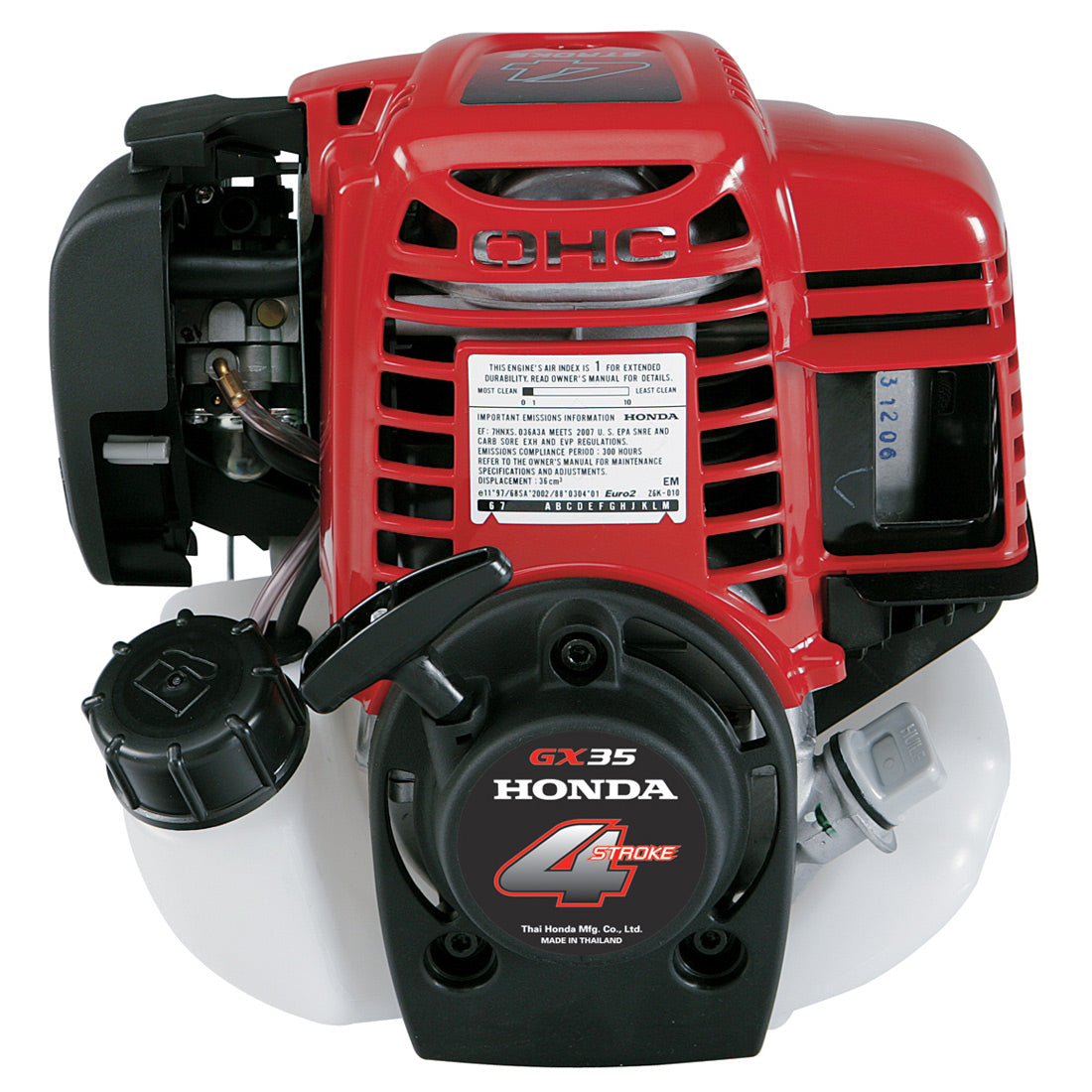

Honda GX35 S3 Horizontal Engine
Honda GX35 S3 Horizontal Engine
Regular price
$259.00 USD
Regular price
Sale price
$259.00 USD
Unit price
/
per
Couldn't load pickup availability
GX35 |
|
| Engine Type |
Air-cooled 4-stroke OHC
|
| Bore x Stroke |
39 mm x 30 mm
|
| Displacement | 35.8 cm3 |
| Net Power Output* |
1.3 hp (1.0 kW) @ 7,000 rpm
|
| Net Torque |
1.2 lb-ft (1.6 Nm) @ 5,500 rpm
|
| PTO Shaft Rotation |
Counterclockwise (from PTO shaft side)
|
| Compression Ratio | 8.0:1 |
| Carburetor |
Diaphragm-type (overflow return)
|
| Ignition System |
Transistorized magneto
|
| Starting System | Recoil |
| Lubrication System |
Crankcase pressure–driven
|
| Governor System | NA |
| Air Cleaner | Semi-dry |
| Oil Capacity |
3.4 US oz (100cc)
|
| Fuel |
Unleaded 86 octane or higher
|
| Fuel Tank Capacity |
0.67 U.S. qt (.63 liter)
|
| Dry Weight | 7.6 lb (3.3 kg) |
| DIMENSIONS | |
| GX35 | |
| Length (min) | 8.0" (204mm) |
| Width (min) | 9.2" (234mm) |
| Height (min) | 9.4" (230mm) |
