Honda Engines

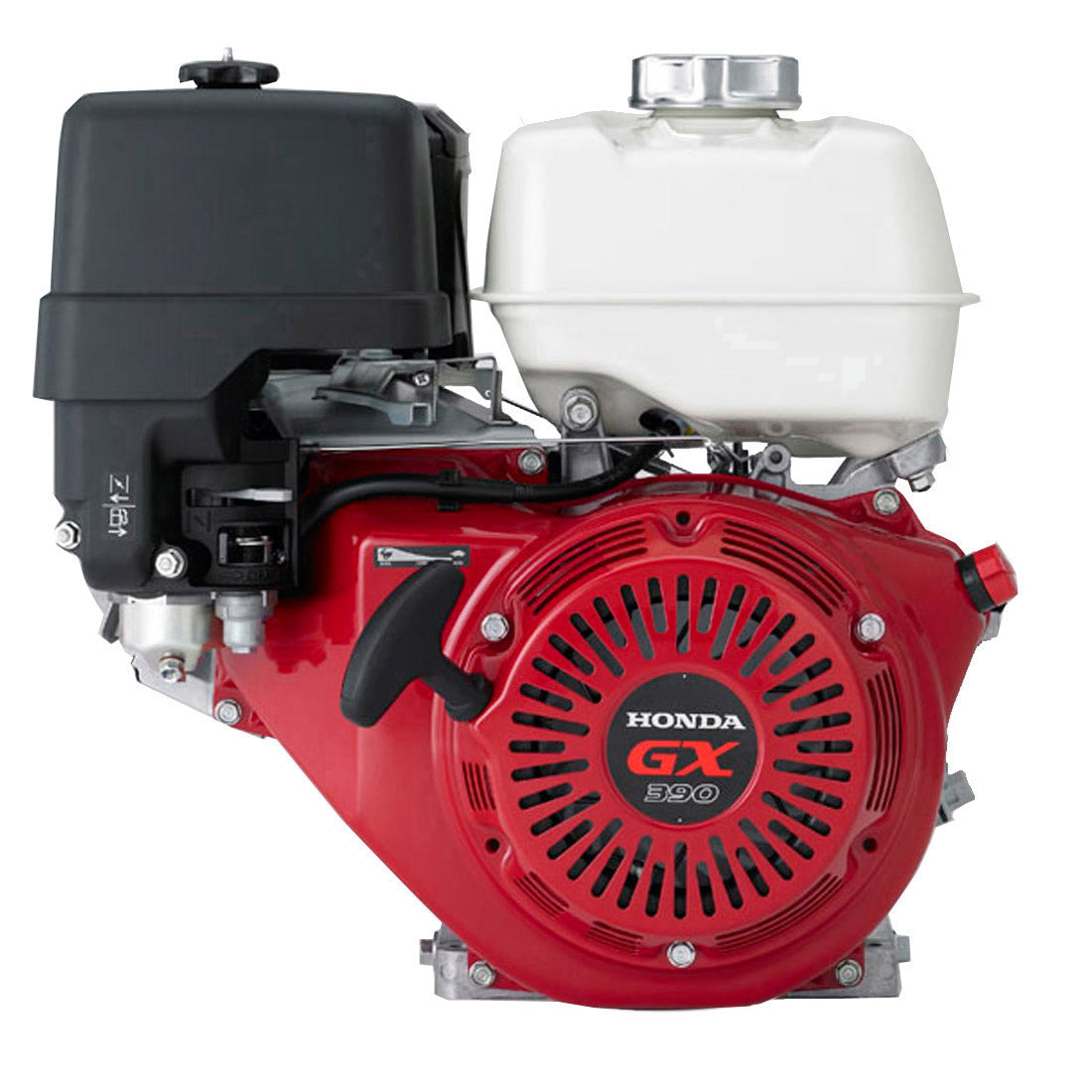

Honda GX390 QAA2 Horizontal Engine
Honda GX390 QAA2 Horizontal Engine
Regular price
$682.00 USD
Regular price
Sale price
$682.00 USD
Unit price
/
per
Couldn't load pickup availability
GX390 QA2 |
|
| Starter Type | Recoil |
| Ignition System |
Digital CDI with Variable Ignition Timing
|
| Carburetor | Butterfly Float |
| Number of Cylinders | One |
| Cylinder Bore |
Cast Iron Sleeve
|
| Air Cleaner | Dual Element |
| Oil Capacity | 1.16 qt |
| Low Oil Alert | Yes |
| Fuel |
Unleaded 86 Octane or Higher
|
| Fuel Tank Capacity | 6.4 qt |
| Fuel Pump | N/A |
| Governor System |
Centrifugal Mass
|
| Controls |
Manual Choke, Manual/Remote (Rod) Throttle
|
| Bore x Stroke |
88mm x 64mm
|
| Compression Ratio | 8.2 : 1 |
| Charging System | N/A |
| Muffler |
Silent, Spark Arrester, Deflector
|
POWER |
|
| Power Output |
11.7 HP @ 3600 RPM
|
| Torque |
19.5 lb-ft (26.5 Nm) @ 2500 rpm
|
CRANKSHAFT |
|
| Orientation | Horizontal |
| Type | Straight |
| Diameter | 1" |
| Length | 3-31/64" |
| Dimensions | 1" x 3-31/64" |
| End Tapped Size |
3/8-24UNF 2BTAP
|
| Keyway | 1/4" |
| Rotation Direction |
Counter-Clockwise
|
DIMENSIONS |
|
| Weight | 78 lb |
| PTO Height | N/A |
