Honda Engines

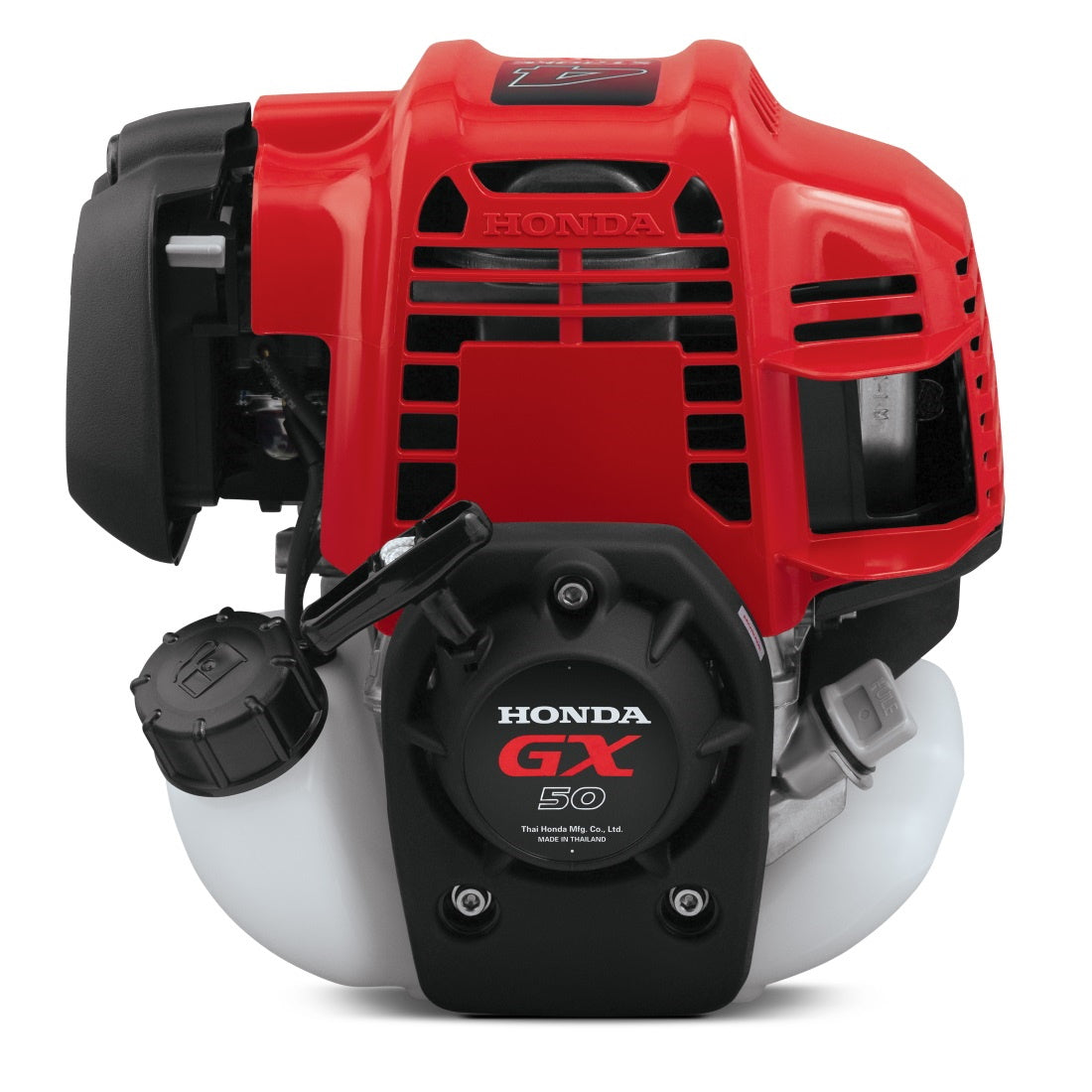

Honda GX50 S3 Horizontal Engine
Honda GX50 S3 Horizontal Engine
Regular price
$303.00 USD
Regular price
Sale price
$303.00 USD
Unit price
/
per
Couldn't load pickup availability
GX50 |
|
|---|---|
| Engine Type | Air-cooled 4-stroke OHC |
| Bore x Stroke | 43 mm x 33 mm |
| Displacement | 47.9 cm3 |
| Net Power Output* | 2.0 hp (1.47 kW) @ 7,000 rpm |
| Net Torque | 1.6 lb-ft (2.2 Nm) @ 5,000 rpm |
| PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
| Compression Ratio | 8.0:1 |
| Carburetor | Diaphragm-type (overflow return) |
| Ignition System | Transistorized magneto |
| Starting System | Recoil |
| Lubrication System | Crankcase pressure–driven |
| Governor System | NA |
| Air Cleaner | Dry Paper |
| Oil Capacity | 4.4 US oz (130cc) |
| Fuel | Unleaded 86 octane or higher |
| Fuel Tank Capacity | 0.67 U.S. qt (.63 liter) |
| Dry Weight | 9.1 lb (4.1 kg) |
DIMENSIONS
GX50 |
|
|---|---|
| Length (min) | 7.8" (199 mm) |
| Width (min) | 10.2" (260 mm) |
| Height (min) | 10.4" (263 mm) |
