Honda Engines

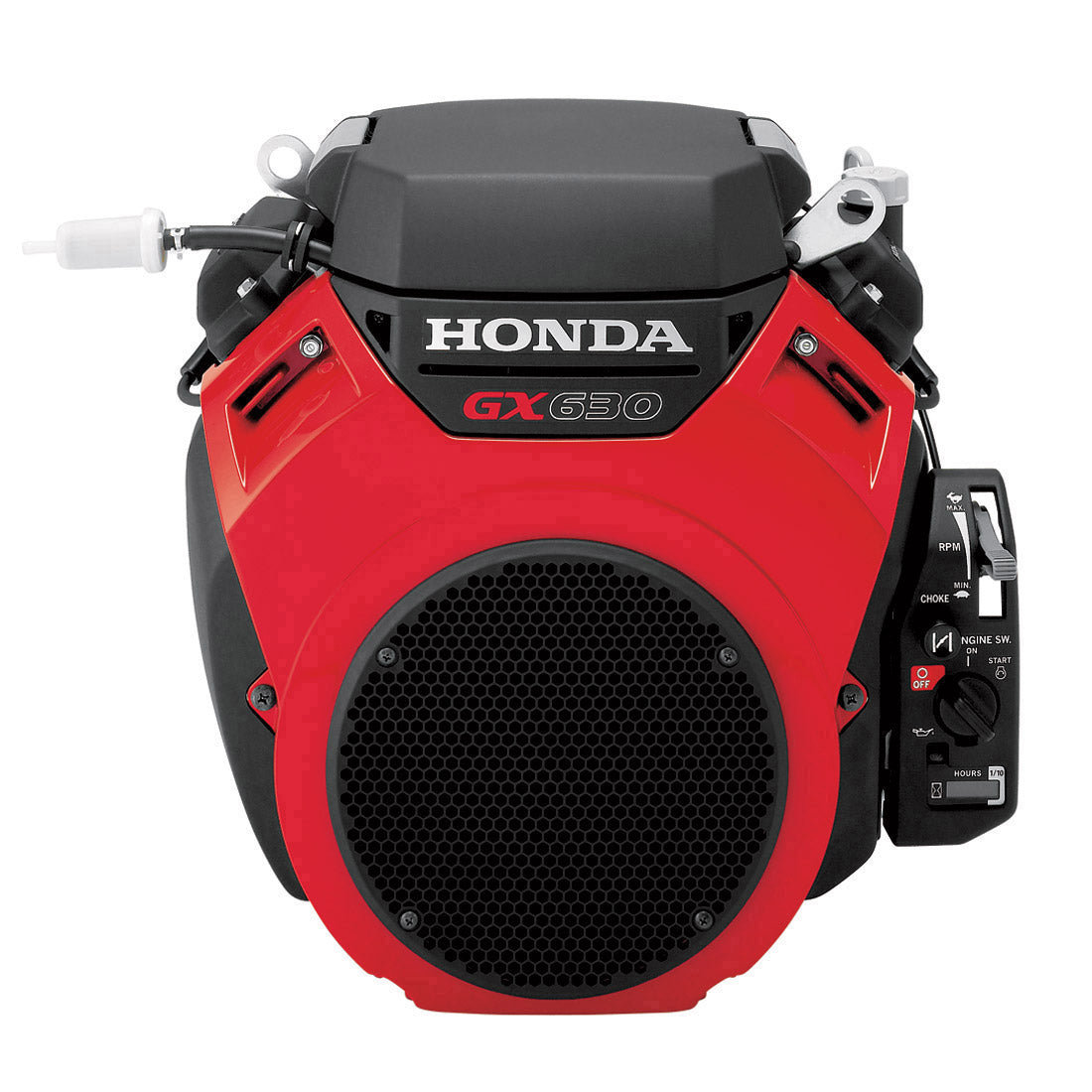

Honda GX630 QZB3 Horizontal Engine
Honda GX630 QZB3 Horizontal Engine
Regular price
$2,042.00 USD
Regular price
Sale price
$2,042.00 USD
Unit price
/
per
Couldn't load pickup availability
GX630 |
|
| Engine Type |
Air-cooled 4-stroke OHV
|
| Bore x Stroke | 78 X 72 mm |
| Displacement | 688 cm3 |
| Net Power Output* |
20.8 hp (15.5 kW) @ 3,600 rpm
|
| Net Torque |
35.6 lb-ft (48.3 Nm) @ 2,500 rpm
|
| PTO Shaft Rotation |
Counterclockwise (from PTO shaft side)
|
| Compression Ratio | 9.3:1 |
| Lamp/Charge coil options | 2.7A, 17A, 26A |
| Carburetor |
Horizontal type, two barrel butterfly valve, internal vent
|
| Ignition System |
Digital CDI with variable ignition timing
|
| Starting System | Electric |
| Lubrication System |
Forced lubrication
|
| Governor System | Mechanical |
| Air Cleaner | Dual element |
| Oil Capacity | 2.1 US qt (2.0l) |
| Fuel |
Unleaded 86 octane or higher
|
| Dry Weight | 96.8 lb (44 kg) |
| DIMENSIONS | |
GX630 |
|
| Length (min) |
15.9" (405 mm)
|
| Width (min) |
16.1" (410 mm)
|
| Height (min) |
17.2" ( 438 mm)
|
