Honda Engines

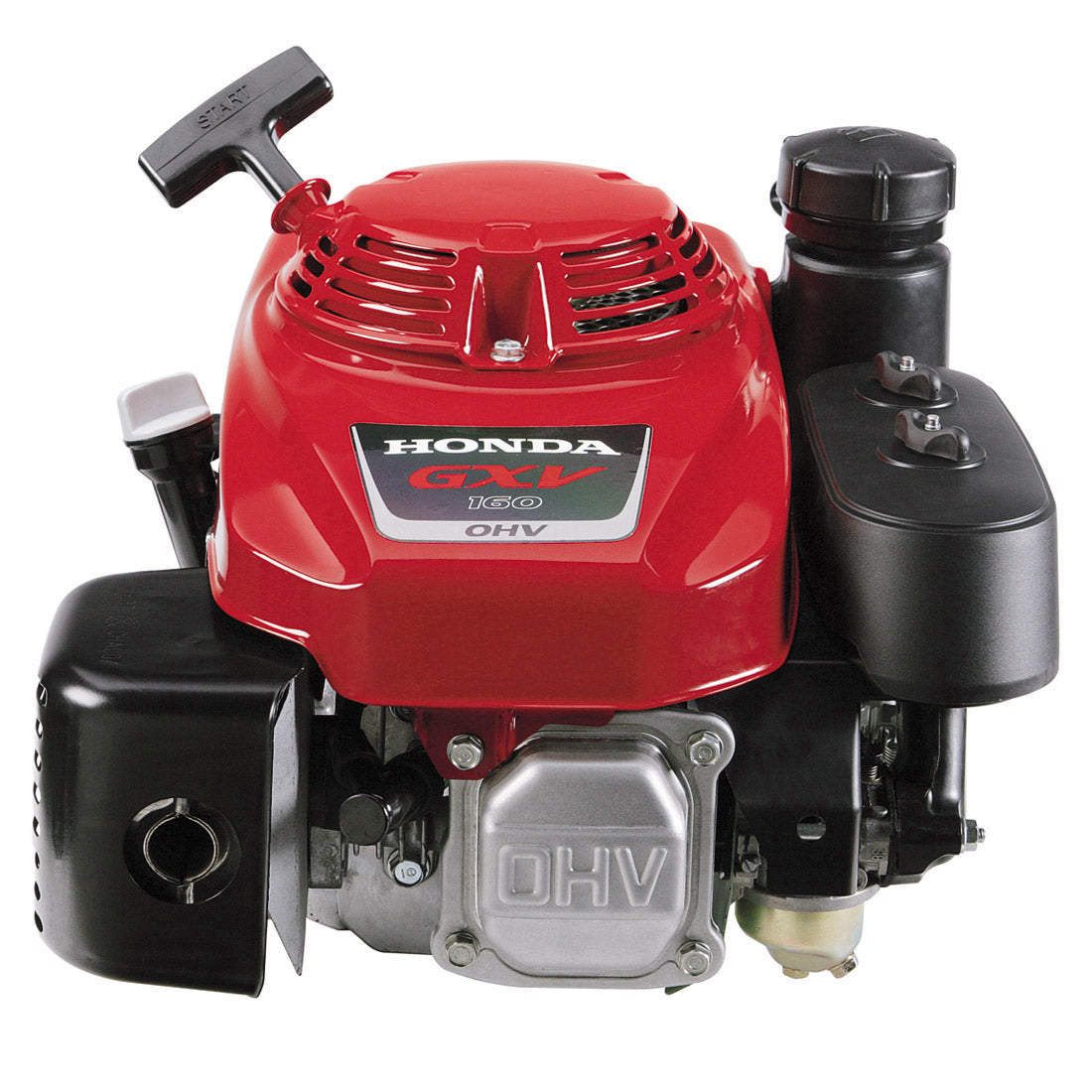

Honda GXV160 NIX2 Vertical Engine
Honda GXV160 NIX2 Vertical Engine
Regular price
$449.00 USD
Regular price
Sale price
$449.00 USD
Unit price
/
per
Couldn't load pickup availability
GXV160 |
|
|---|---|
| Engine Type | Air-cooled 4-stroke OHV |
| Bore x Stroke | 68 X 45 mm |
| Displacement | 163 cm3 |
| Net Power Output* | 4.3 hp (3.2 kW) @ 3,600 rpm |
| Net Torque | 7.1 lb-ft (9.6 Nm) @ 2,500 rpm |
| PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
| Compression Ratio | 8.0:1 |
| Carburetor | Float Type |
| Ignition System | Transistorized magneto |
| Starting System | Recoil |
| Lubrication System | Splash |
| Governor System | Centrifugal Mechanical |
| Air Cleaner | Dual element |
| Oil Capacity | 0.69 US qt (0.65l) |
| Fuel Tank Capacity | 1.5 U.S. qts (1.4 liters) |
| Fuel | Unleaded 86 octane or higher |
| Dry Weight | 32 lb (14.5 kg) |
DIMENSIONS
GXV160 |
|
|---|---|
| Length (min) | 16.3" (415mm) |
| Width (min) | 14.1" (359mm) |
| Height (min) | 13.9" (354mm) |
